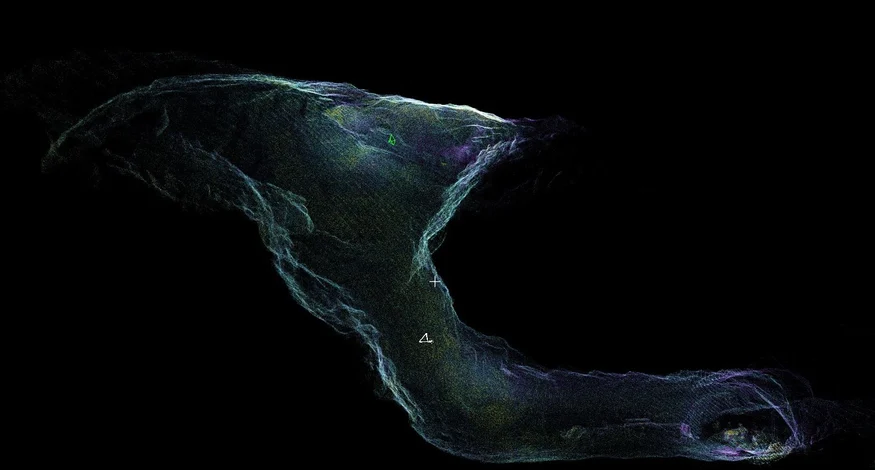

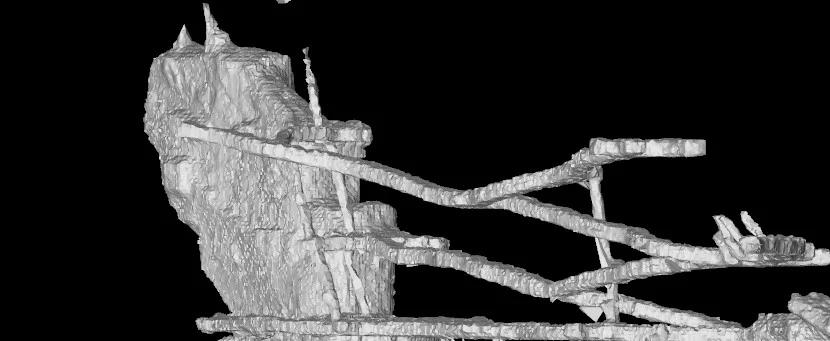

Safety The Elios 3 collects critical data that helps operators identify risks such as subsidence, unintended access points, and the presence of harmful gases. This ensures a safer working environment for mine personnel. Efficiency In just 15 hours of flight, the Elios 3 gathered new and valuable data about the condition of old workings, significantly reducing the time required for traditional survey methods. Accuracy Using the Elios 3 provided the team with precise insights into the state of the old workings, allowing them to determine what, if any, maintenance or sealing was needed. Access The Elios 3 replaced an older drone system that required a large space to operate—up to 9x9 feet. The Elios 3 only needs 60x60 cm, making it ideal for tight underground spaces. The intricate map of tunnels created with the help of the Elios 3's data is informing mine management The Elios 3's LiDAR point clouds are helping digitize mines in a way that is "a game changer" Variable Valve Timing (VVT, Variable Valve Timing) is a technology used in automotive piston engines. VVT technology can adjust the overlap time and timing (part or all) of the engine's intake and exhaust systems, reducing fuel consumption and improving efficiency. Adjustable Cam Gears,Camshaft Sprocket Gear,Camshaft Timing Gear,Gear Driven Camshaft Wenzhou Zhongking Parts Co.,ltd , https://www.oemvvt.comSurveying Old Workings in a Mine with the Elios 3
Key Benefits at a Glance
Mines around the world vary greatly in size, construction, and age. As mines get older, managing them becomes increasingly complex. Some of the oldest active mines date back to the 1800s, and today, ensuring the safety of modern operations often involves understanding the layout and condition of these historic tunnels.
Old workings can be dangerous, whether they are part of a disused site or an active mine. These areas may contain unstable structures, hazardous gases, water, or abandoned equipment. Without accurate records, navigating these spaces poses a serious risk. If new excavations occur without knowledge of existing tunnels, it could lead to accidents or costly delays.
The expanse of a mine underground is a complete mystery from the surfaceHow Drones Are Revolutionizing Mine Surveys
The Empire State Mine, owned by Titan Mining, is located in upstate New York and has been producing high-quality zinc ore since the 1920s. The mine’s shaft extends over 2,300 feet deep at a 40-degree angle, making it one of the most challenging sites for underground exploration.

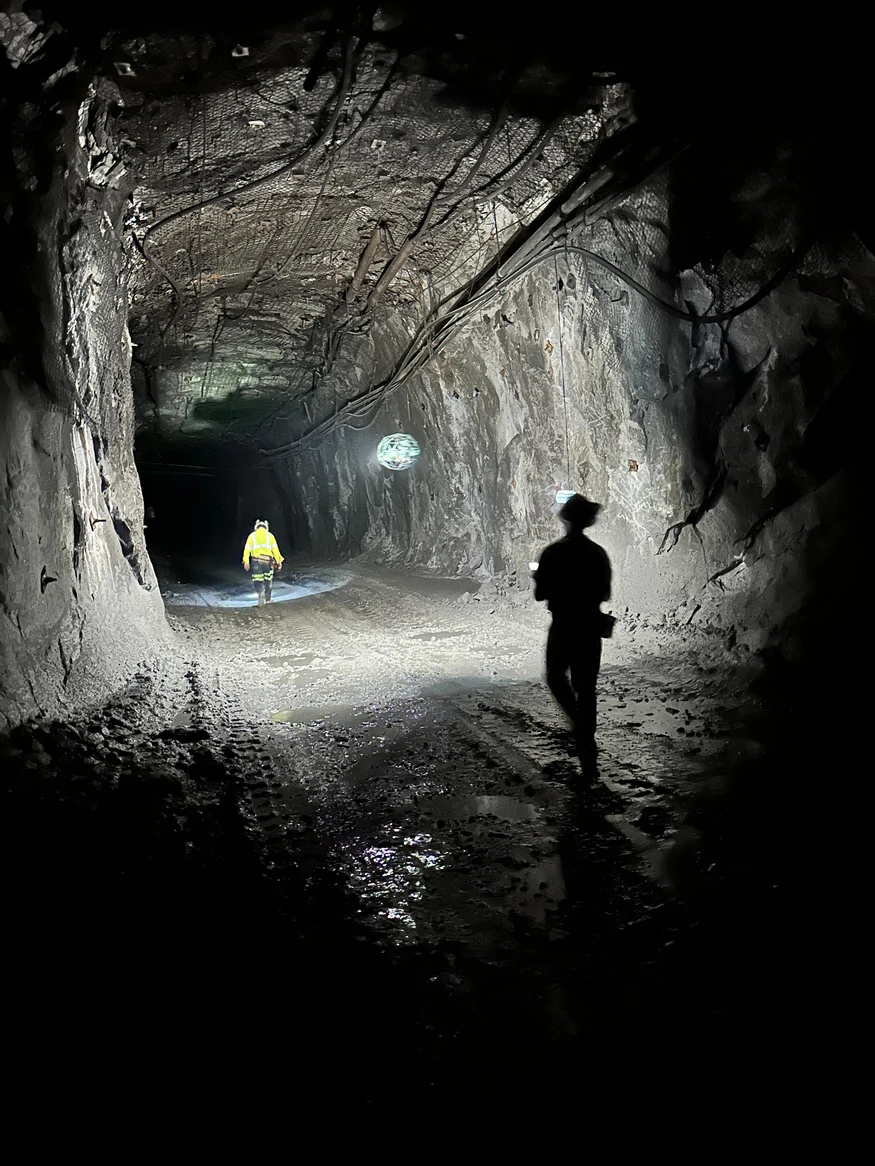

Surveyors at the Empire State Mine using the Elios 3 as they navigate underground tunnelsMapping Old Workings Around a Shaft
Titan Mining wanted a clear and updated view of the mine’s shaft and surrounding tunnels to improve their records and understand the full layout. While 2D maps and AutoCAD models existed, there was no single source of truth. The Elios 3 helped fill this gap by providing a comprehensive 3D model of the entire underground network.
Results of an Underground Mine Survey with a Drone

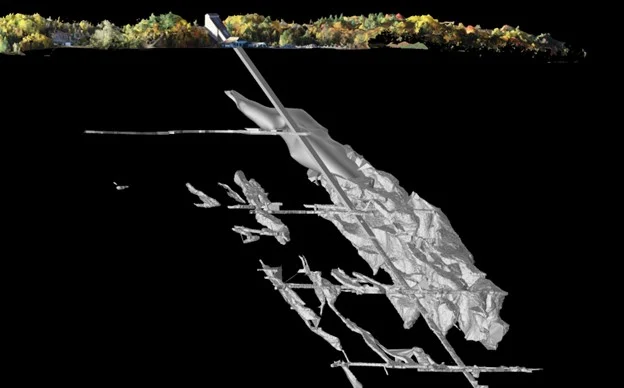

With just 15 hours of flight time, the Elios 3 provided a detailed 3D model of both the underground and surface areas. This data not only improved current operations but also laid the groundwork for future planning.
Variable valve timing system OCV VCT consists of solenoid valve (OCV) and variable camshaft phase adjuster (VCT), by adjusting the engine cam phase, the intake air volume can be changed with the change of engine speed, so as to achieve the best Combustion efficiency and improved fuel economy.
July 14, 2025
